CocoaPods 实践

本文简单介绍下 cocoapod 使用，及编写 podspec 文件时遇到的一些问题。

使用 cocoapods

创建 Podfile

进入项目中和.xcodeproj同级的文件夹，创建Podfile文件。

touch Podfile

编辑 Podfile

# Uncomment this line to define a global platform for your project

platform :ios, '8.0'

target 'TestCocoaPods' do
  pod 'SDWebImage', '~> 4.3.2'
end

版本号有多种表示方式，其中：

1. ‘>=1.0’ 最低版本号为1.0
2. ‘<=1.0’ 最高版本号为1.0
3. ‘~>1.0’ 兼容1.0的版本的最新版本

使用私有库

# 注意替换私有git域名
pod 'ProjectName', :git=>"https://XXX.git"

使用本地库

pod 'CocoaPodDemo', :path => '../CocoaPodDemo/'

安装

pod install
# 或者
pod install --repo-update

如果有需求修改依赖的第三方库的版本号，修改完毕之后，执行命令：

pod update

开源项目支持 cocoapod

新建 podspec 文件

pod spec create $podspecName

编辑podspec文件

示例如下

Pod::Spec.new do |spec|

  # ―――  Spec Metadata  ―――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  These will help people to find your library, and whilst it
  #  can feel like a chore to fill in it's definitely to your advantage. The
  #  summary should be tweet-length, and the description more in depth.
  #

  spec.name         = "CocoaPodDemo"
  spec.version      = "0.0.2"
  spec.summary      = "A short meaningful description of CocoaPodDemo."

  # This description is used to generate tags and improve search results.
  #   * Think: What does it do? Why did you write it? What is the focus?
  #   * Try to keep it short, snappy and to the point.
  #   * Write the description between the DESC delimiters below.
  #   * Finally, don't worry about the indent, CocoaPods strips it!
  spec.description  = <<-DESC
  A long long long long long long description of CocoaPodDemo.
                   DESC

  spec.homepage     = "https://github.com/WhiteTeeth/CocoaPodDemo"
  # spec.screenshots  = "www.example.com/screenshots_1.gif", "www.example.com/screenshots_2.gif"


  # ―――  Spec License  ――――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  Licensing your code is important. See https://choosealicense.com for more info.
  #  CocoaPods will detect a license file if there is a named LICENSE*
  #  Popular ones are 'MIT', 'BSD' and 'Apache License, Version 2.0'.
  #

  spec.license      = "MIT"
  # spec.license      = { :type => "MIT", :file => "FILE_LICENSE" }


  # ――― Author Metadata  ――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  Specify the authors of the library, with email addresses. Email addresses
  #  of the authors are extracted from the SCM log. E.g. $ git log. CocoaPods also
  #  accepts just a name if you'd rather not provide an email address.
  #
  #  Specify a social_media_url where others can refer to, for example a twitter
  #  profile URL.
  #

  spec.author             = { "baiya" => "baiya@test.com" }
  spec.social_media_url   = "https://github.com/WhiteTeeth"

  # ――― Platform Specifics ――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  If this Pod runs only on iOS or OS X, then specify the platform and
  #  the deployment target. You can optionally include the target after the platform.
  #

  # spec.platform     = :ios
  # spec.platform     = :ios, "5.0"

  #  When using multiple platforms
  # spec.ios.deployment_target = "5.0"
  # spec.osx.deployment_target = "10.7"
  # spec.watchos.deployment_target = "2.0"
  # spec.tvos.deployment_target = "9.0"


  # ――― Source Location ―――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  Specify the location from where the source should be retrieved.
  #  Supports git, hg, bzr, svn and HTTP.
  #

  spec.source       = { :git => "https://github.com/WhiteTeeth/CocoaPodDemo.git", :tag => "#{spec.version}" }


  # ――― Source Code ―――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  CocoaPods is smart about how it includes source code. For source files
  #  giving a folder will include any swift, h, m, mm, c & cpp files.
  #  For header files it will include any header in the folder.
  #  Not including the public_header_files will make all headers public.
  #

  spec.source_files  = "CocoaPodDemo", "CocoaPodDemo/**/*.{h,m}"
  spec.subspec 'Group' do |subspec|
    subspec.source_files = "CocoaPodDemo/Group", "CocoaPodDemo/Group/**/*.{h,m}"
  end
  # spec.exclude_files = "Classes/Exclude"

  # spec.public_header_files = "Classes/**/*.h"


  # ――― Resources ―――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  A list of resources included with the Pod. These are copied into the
  #  target bundle with a build phase script. Anything else will be cleaned.
  #  You can preserve files from being cleaned, please don't preserve
  #  non-essential files like tests, examples and documentation.
  #

  # spec.resource  = "icon.png"
  # spec.resources = "Resources/*.png"

  # spec.preserve_paths = "FilesToSave", "MoreFilesToSave"


  # ――― Project Linking ―――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  Link your library with frameworks, or libraries. Libraries do not include
  #  the lib prefix of their name.
  #

  # spec.framework  = "SomeFramework"
  # spec.frameworks = "SomeFramework", "AnotherFramework"

  # spec.library   = "iconv"
  # spec.libraries = "iconv", "xml2"


  # ――― Project Settings ――――――――――――――――――――――――――――――――――――――――――――――――――――――――― #
  #
  #  If your library depends on compiler flags you can set them in the xcconfig hash
  #  where they will only apply to your library. If you depend on other Podspecs
  #  you can include multiple dependencies to ensure it works.

  # spec.requires_arc = true

  # spec.xcconfig = { "HEADER_SEARCH_PATHS" => "$(SDKROOT)/usr/include/libxml2" }
  # spec.dependency "JSONKit", "~> 1.4"

end

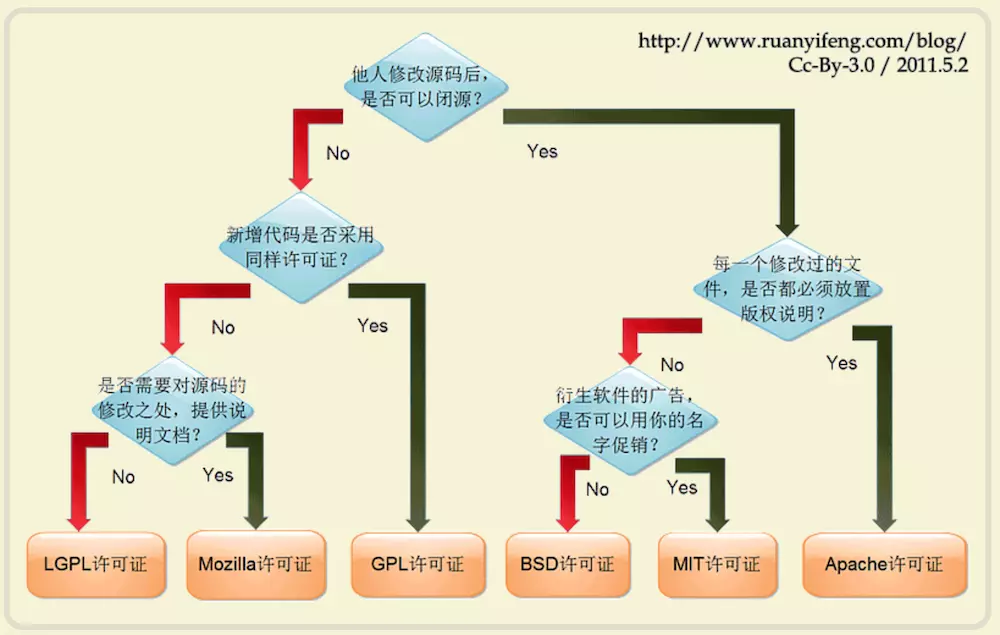

license 有多种协议，常见的6种关系如下：

更多标签参考 Podspec Syntax Reference

分支新建tag，并推送到远程仓库

# 新建tag
git tag 1.1.0
# 将本地的tag推送到远程仓库
git push --tags

验证podspec文件，解决提示的问题

# 本地验证
pod lib lint $podspecName
# 远程验证
pod spec lint $podspecName

提交至CocoaPods

略

发布至私有库

1). 添加仓库

pod spec lint --sources='https://git.code.oa.com/QQFrameworks/pod_specs,https://github.com/CocoaPods/Specs'

2). 验证需要提交的 xx.podspec

pod spec lint xx.podspec --allow-warnings --no-clean  --verbose --use-libraries

3). 推送到 QQFrameworks/pod_specs

pod repo push oa-qqframeworks-pod_specs xx.podspec --allow-warnings  --verbose --use-libraries

其他问题

私有库增加依赖

spec.dependency "JSONKit", "~> 1.4"

设置 arc 或者 mrc

是否是ARC,默认true,如果不是,会自动添加-fno-objc-arc compiler flag

spec.requires_arc = true

如果只是部分文件是 arc, 参考下面设置：

#该文件夹下是ARC,其它非ARC
spec.requires_arc = 'Classes/Arc'

或者

spec.requires_arc = ['Classes/*ARC.m', 'Classes/ARC.mm']

如果想再 arc 工程中标记部分文件为 mrc，可以通过子模块设置，参考下面设置：

#添加需要mrc标识的文件，为相对路径
non_arc_files = 'xxx/aa.m','xxx/xxx.m'
#从工程中排除
s.exclude_files = non_arc_files
#为需要添加mrc标识的文件添加子设置
s.subspec 'no-arc' do |sp|
    sp.source_files = non_arc_files
    sp.requires_arc = false
end

Header Search Path

设置头文件搜索路径:

s.xcconfig = { 'USER_HEADER_SEARCH_PATHS' => '"${PROJECT_DIR}/.."' }

设置头文件递归搜索:

s.xcconfig = { 'USER_HEADER_SEARCH_PATHS' => '"${PROJECT_DIR}/.."/**' }

header search path 设置相对 podspec 的路径

#对于HEADER_SEARCH_PATHS，对将设置的字符串直接拷贝到xcode中，不会像上面source_files这样使用相对路径。
#所以，在这里先获取当前路径，再设置进去。最后加**表示recursive，即循环查找子目录的意思
$dir = File.dirname(__FILE__)
$dir = $dir + "/MyLibrary/cfiles/**"  #$dir:/Users/wangbing/TempCode/MyLibrary/cfiles/**
subcfiles.pod_target_xcconfig = { "HEADER_SEARCH_PATHS" => $dir}

Library/Framework Search Path

Library Search Path 和 Header Search Path 类似，在xcconfig中添加

spec.xcconfig = { 'FRAMEWORK_SEARCH_PATHS' => '"$(SRCROOT)/libs/Frameworks/Huoyan"' }

spec.xcconfig  = { 'LIBRARY_SEARCH_PATHS' => '"$(PODS_ROOT)/iOS_Util/iOS_Util/AMR/lib"' }

spec.xcconfig  = { "HEADER_SEARCH_PATHS" => "${PODS_ROOT}/boost" }

spec.xcconfig = { 'HEADER_SEARCH_PATHS' => '$(SDKROOT)/usr/include/libxml2' }

添加 pch 文件

spec.prefix_header_file = 'SDKDemo/SDKDemo-Prefix.pch'

或者通过下面方式在对应 pod 的 pch 文件中添加一行

s.prefix_header_contents = '#import "SomeClass.h"'

支持 c++

s.library = 'c++'
s.xcconfig = {
    'CLANG_CXX_LANGUAGE_STANDARD' => 'compiler-default',
    'CLANG_CXX_LIBRARY' => 'libc++'
}

支持 c++ 11

s.xcconfig = {
    'CLANG_CXX_LANGUAGE_STANDARD' => 'c++11',
    'CLANG_CXX_LIBRARY' => 'libc++'
}

引入系统库

引入系统 framwork

spec.framework = "CoreTelephony"

spec.frameworks = "CoreTelephony", "SystemConfiguration"

引入系统 library

spec.library   = "resolv"

spec.libraries = "c++", "resolv"

创建subspec

#创建一个subspec
s.subspec 'MyLibraryMain' do |submain|

    #引入代码文件
    submain.source_files = "MyLibrary/main/**/*.{h,m}"

    #设置公开头文件
    submain.public_header_files = "MyLibrary/main/public.h"

    #设置资源文件
    submain.resource  = "MyLibrary/resources/configFiles.bundle"

    #设置MyLibraryMain模块依赖的系统库，注意，这里加的是系统库
    submain.frameworks = "SystemConfiguration"

    #设置依赖，这里可以依赖当前spec中的subspec，也可以依赖github上公开的开源库，如'AFNetworking'。
    submain.dependency "MyLibrary/MyLibraryCFiles"
end

遗留问题

1. 私有库通过 podspec git 方式源码引入时，同时私有库依赖第三方c++ 库，podsepc 文件中如何设置 c++ 头文件的header search path ？

   比如引入 protobuf 库，.pb.cc 文件中引入头文件 #include <google/protobuf/stubs/common.h>, 如何可以在不更改头文件引入方式及使用方不手动添加 header search path 的情况下引入 protobuf。
